ICOM IC-V80 Amateur Radio Long Talking Range VHF Portable Transceiver

Original price was: $245.00.Current price is: $87.00.

SKU: 1005005672371425098977u7 Category: Tags: ,

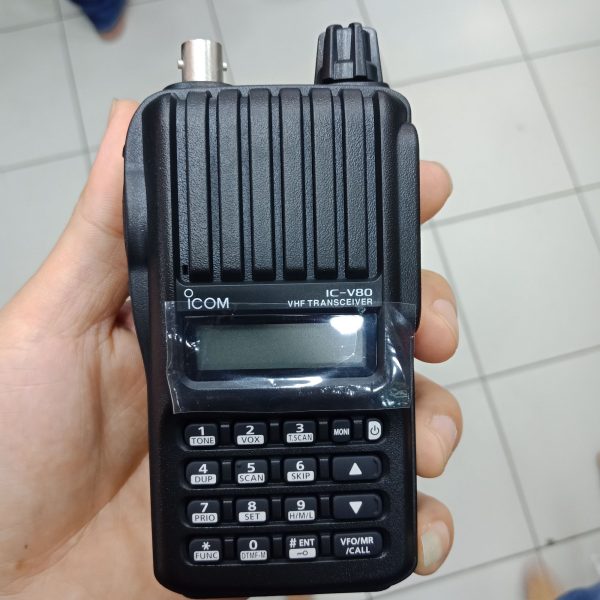

ICOM IC-V80 Portable Ham Amateur Radio Long Talking Range

Icom radios are built tough, and the IC-V80/E Icom’s most economical 2M is no exception.

Icom radios are built tough, and the IC-V80/E – Icom’s most economical 2M – is no exception. This military rugged rig offers water resistance and superior protection against dust and dirt (IP54). Compact, rugged and with plenty of power, the IC-V80/E is ideal for basic, on-the-go ham operations.

Features :

750mW loud audio

The IC-V80/E uses the BTL (bridge-tied load) amplifier that doubles the audio output. The 36mm large speaker delivers 750mW of loud and intelligible audio*. Great for noisy environments.
* Typical value using with internal speaker.

Powerful 5.5W of output power

The IC-V80/E offers a just-right mix of power and size. 5.5 watts of high power will work to get your message through. Get up to 19 hours* of operating time with the Li-ion battery pack (BP-265) or 13 hours with the Ni-MH (BP-264). All that power comes is an easy to hold and use size – not too big, not too small.
* Typical operation. 5:5:90 duty cycle with power save on.

IP54 and MIL-STD-810 rugged construction

The dust protection and water-resistance equivalent to IP54 provides reliable operation for practical outdoor operation. The IC-V80/E tested to and passed 11 categories of MIL-STD-810 environmental tests.

A total of 207 memory channels

The IC-V80/E has a total of 207 memory channels, including 200 regular channels, 6 scan edges and 1 call channel. The channel name is programmable with 5 characters for easy recognition.

Built-in CTCSS/DTCS

The CTCSS and DTCS tone codes provide quiet stand-by and allow you to use tone-access repeaters. The pocket beep alerts you when a matching tone frequency is received. The tone scan detects the subaudible tone that is used for repeater access.

Internal VOX function

The IC-V80/E has internal VOX (Voice Operated Transmit) function for convenient handsfree operation with a compatible optional headset and plug adapter cable. Also, the VOX gain and VOX delay time are adjustable.

13 hours* of operating time with the supplied 1400mAh Ni-MH battery pack (*Approx for 5:5:90 duty cycle with power save on)

Dust protection and water resistant construction, equivalent to IP54

5-character alphanumeric display

DTMF memory channels

Desktop charger, BC-192 and AC adapter, BC-147S supplied*
(*Depending on version)

Other Features:

 WX channel and weather alert function (USA version only)

 Program, memory, skip, priority and tone scans

 Power save function

 BNC type antenna connector

 Automatic repeater function (USA version only)

 1750Hz tone for European repeater access (IC-V80E only)

 TOT (time out timer) setting

 Repeater lockout and busy channel lockout

 PC programmable with optional CS-V80

 Transceiver-to-transceiver cloning (Optional)

 Direct keypad frequency entry

 DTMF autodial memories

 Auto power off

 LCD backlight

 Wide/narrow channel spacing

Specifications :

Frequency coverage
( EXP Version)
IC-V80:
Tx 136-174MHz
Rx 136–174MHz
Dimensions
(W×H×D; Proj. not included)
58×112×30 mm;
2932×41332×1316 in
Weight
(approx.)
360g; 12.7oz
with antenna and BP-264
Output power
(typical values)
5.5W, 2.5W, 0.5W
at 7.2V DC
Sensitivity
(at 12dB SINAD)
0.14μV typ.
Audio output power
(at 10% distortion)
750mW typ. (Internal SP, 16Ω load)
450mW typ. (External SP. 8Ω load)

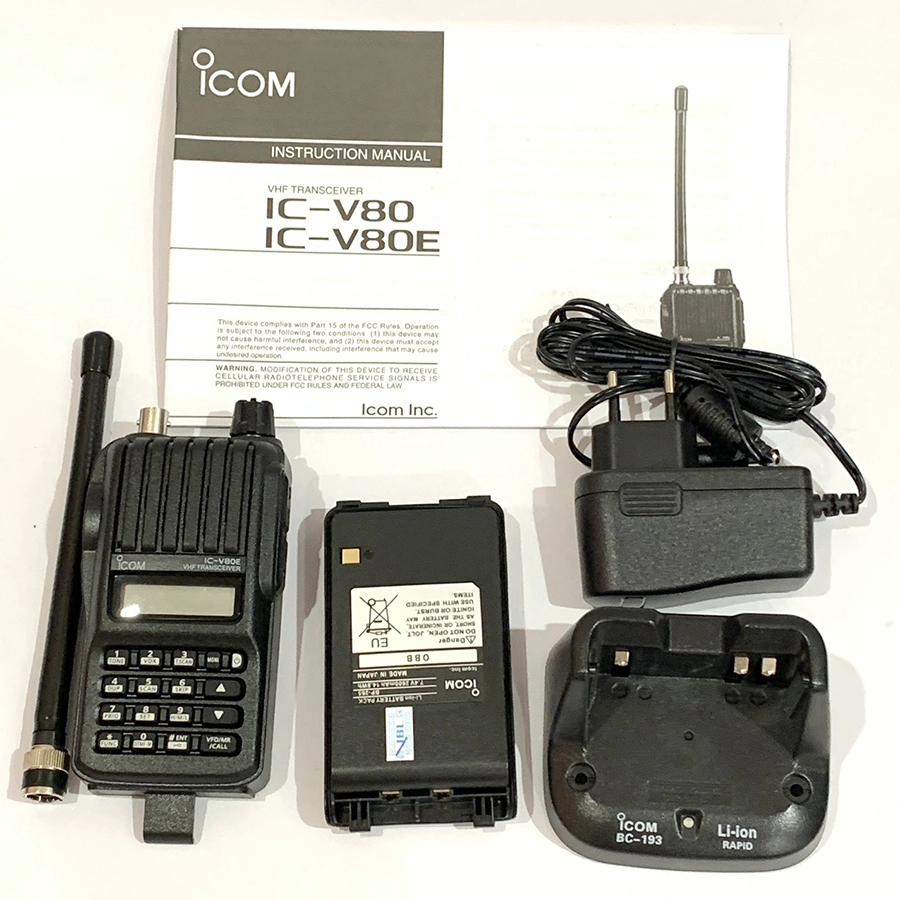

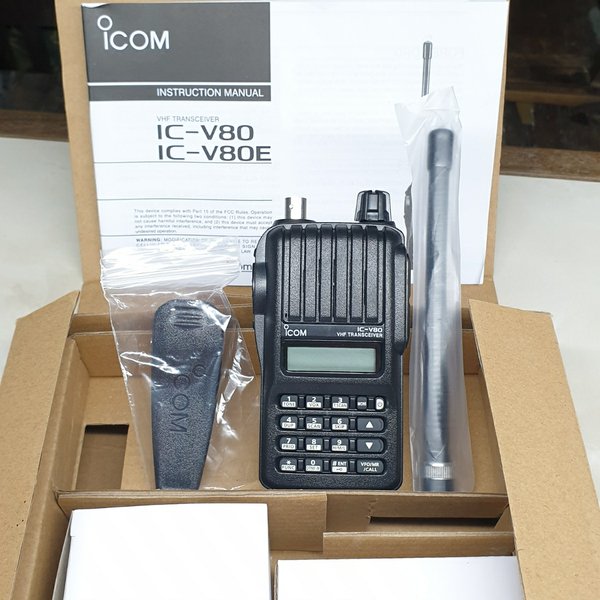

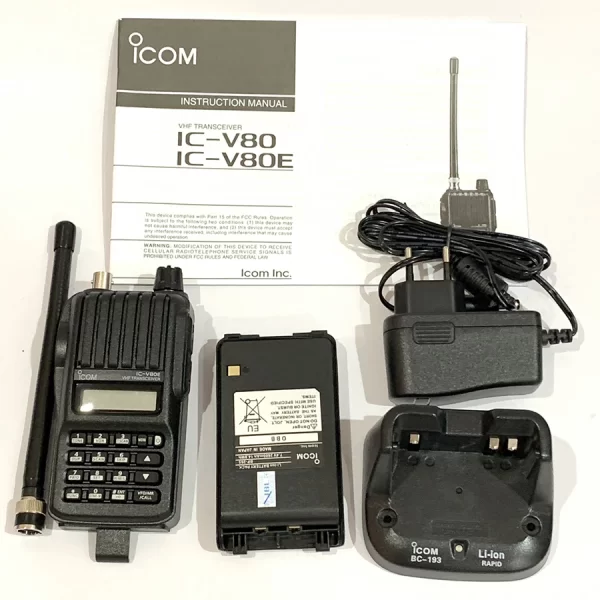

Each set PACKAGE CONTAIN
1x ICOM IC-V80
1x Antenna
1x Ni-Mh Battery
1x Charger

1x English Operating Manual

Weight 0.9 kg
Dimensions 400 × 400 × 200 cm
